CHQ-WSB2 | Hochiki's EN Approved Fire Detection

CHQ-WSB2 Description

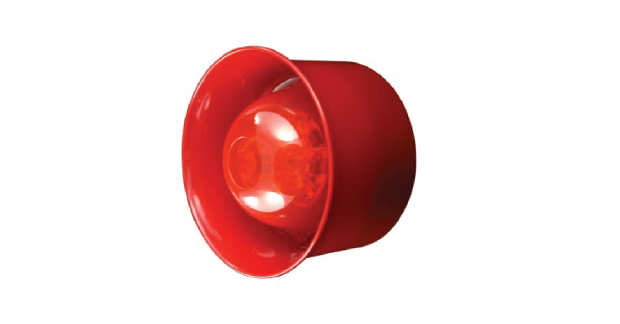

CHQ-WSB2 is an addressable loop powered Wall Sounder Beacon
innovatively designed to provide a range of tones and volumes with a
maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.



The unit features an integral beacon within the horn utilising high intensity
LED technology and is designed to fit to the Standard Base (YBO-R/3 or YBOR/3(WHT)) or the Isolator Base (YBO-R/SCI(RED) or YBO-R/SCI(WHT)).

CHQ-WSB2 Features & Specifications



- High Intensity LED technology

- Auto-Shutdown feature prevents noise pollution*1

- Sounder and Beacon can operated independently*1

- 0.5 or 1Hz flash frequency*1

- SIL Level 2 approved variant available



Ordering Code: CHQ-WSB2 - Red | CHQ-WSB2(WHT) - White | CHQ-WPK - Weatherproof Kit

Operating Voltage: 17 ~ 41 Vdc

Number of Tones: 51 Tone

Frequency Range: 300 Hz ~ 2850 Hz

Operating Temperature Range: -10 °C to +50 °C



Enquire About CHQ-WSB2 Now
